ATM List

This screen lists all ATMs for the current institution. By default, ATMs are grouped by status and sorted by name when you first open the page.

Click an ATM to open the ATM Details page.

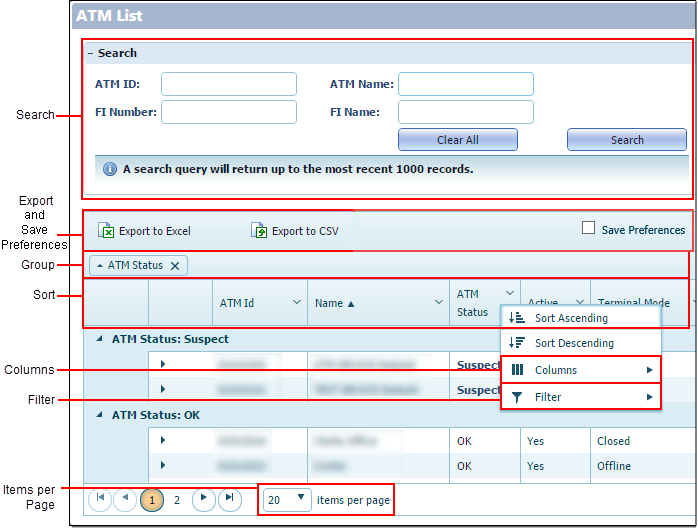

Search

You can search using these fields.

• ATM ID supports * wild-card search.
• ATM Name returns results for partial matches.
• FI Number requires an exact match.
• FI Name returns results for partial matches.

Export

You can export the list to Excel® or CSV format.

Save Preferences

Select this box to save your grid preferences. If this box is selected, you can go to a different screen or exit the application, and your preferences remain for that grid until you change them.

You can save your preferences for the following grids:

• ATM List
• ATM Details
  • Event Notifications
  • Transaction History
  • Pending Commands
  • Processed Commands
• Event Notifications
• Transaction History
• View & Send Commands

Group

You can group the list by dragging one or more columns to the grouping area at the top of the grid.

Sort

Select the column header to sort by column.

Show/Hide Columns

Click the chevron in the column header to open the Columns function. You can show or hide columns by selecting or clearing their check boxes. Column options vary depending on the page.

Filter

Click the chevron in the column header to open the Filter function. You can create a filter to return more specific results. Filter options vary depending on the column and the page.

Items per Page

This feature indicates the number of items that appear per page.

Also, select the drill-down arrow to display more information for an ATM.

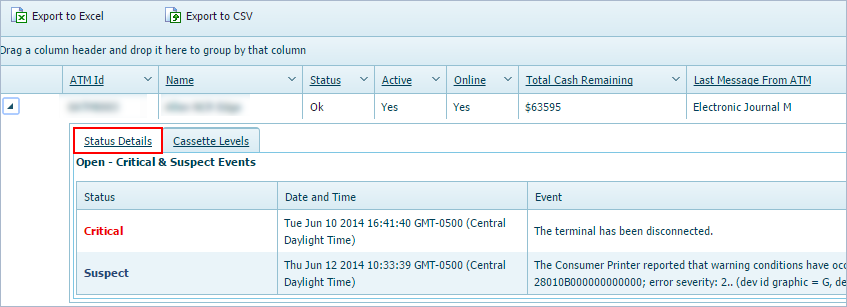

The Status Detail tab contains additional details on open critical or suspect events. Critical events appear in red.

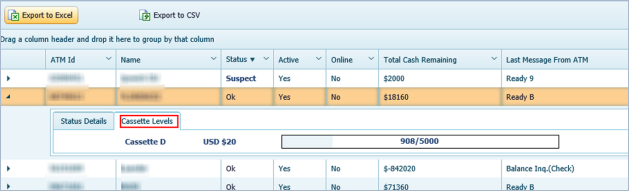

In the Cassette Levels tab, you can see the total cash level remaining in the ATM.
